Volkswagen E-Golf Plugin Delphi Electric Car Charger - 110V

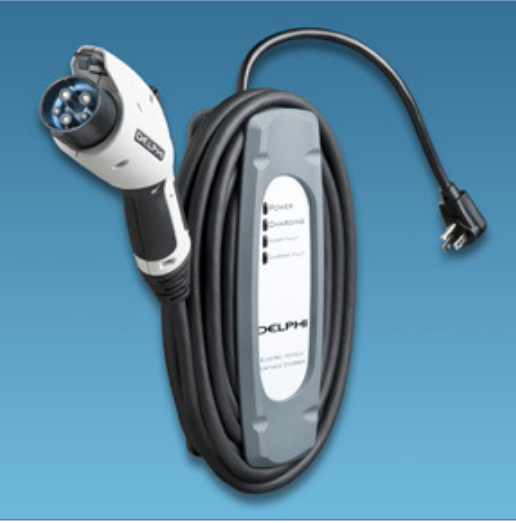

The technology in this high-quality cordset enables a seamless transition between the automotive and residential/commercial environments. This charging system consists of four major components, which together deliver a robust and reliable charge cycle to an electric vehicle.

• ICCB (In-Cable Control Box) — contains charge station technology
• Cable — 15 feet (17 feet including the wall plug) of UL-Type EVJE
• Cord connector — universal SAE J1772
• Vehicle inlet — includes wiring to on-board vehicle charger

The system is designed to current industry standards, making it compatible with many battery electric and plug-in hybrid electric vehicles.

Benefits

• Complete charging system, designed for both functionality and styling
• Provides convenience, safety and comfort for owners
• User-friendly system plugs into existing electrical infrastructure
• Male plug of charge coupler connector mates directly to a built-in female inlet on vehicle

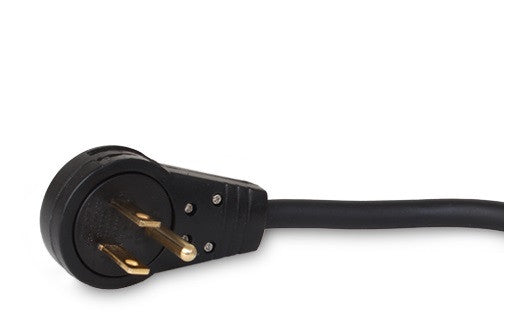

• EVSE end provides standard, grounded UL grid plug connection to household 120VAC/10A service
• Engineered to provide a robust, reliable charge
• Systems can be customized for global applications based on local supply voltage and grid plug interface

Primary Functions

• Multiple levels of safety for the user, the EV and the charging equipment
• Service ground monitor
• Charger circuit interrupt device (CCID20) with automatic reclosure
• After a nuisance trip, the unit will self check and resume charging

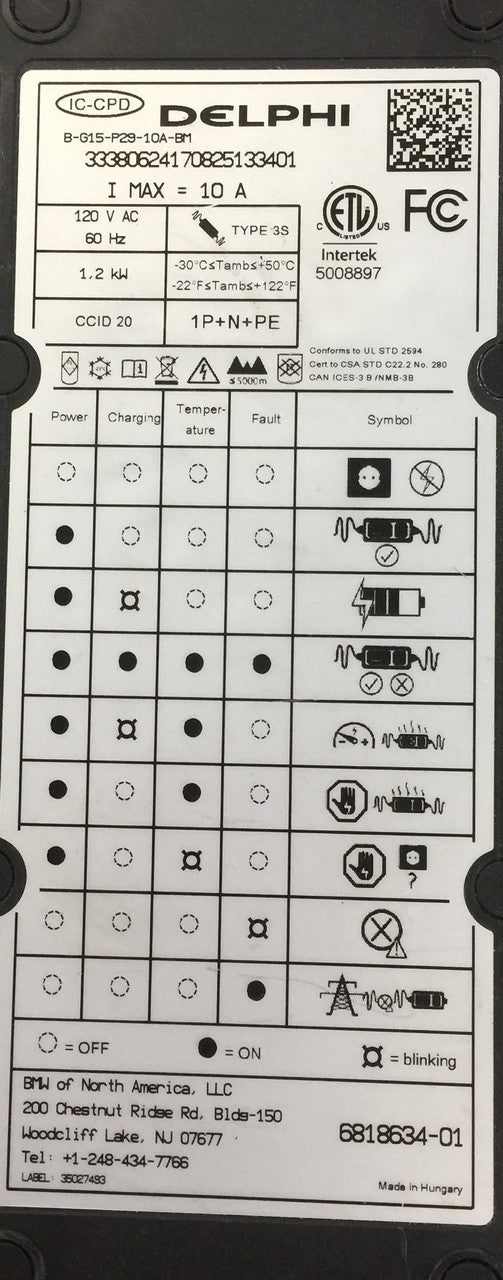

• LED indicators
• Power (input power present)
• Charging (output power provided to vehicle)
• Power fault (missing/bad safety ground)
• Charging fault (problem on output side, e.g. CCID trip, pilot error)
• Pushbutton-controlled latch for safe and secure connection

Features

• ICCB
• UL 2231 ― Safety of Personnel Protection Systems for EV Supply Circuits
• Ground fault protection with fully automatic retest and reclosure
• UL 2202 — Electric Vehicle (EV) Charging System Equipment
• UL 2594 — Safety of EV Supply Equipment
• Reclosure
• Allows charging to resume after a fault
• If fault clears, no user intervention is required
• Contactor monitoring circuit
• EVSE constantly checks contacts to verify integrity of AC charging path
• CCID self test
• Self-check feature eliminates the need for monthly testing by user
• Cord Connector
• Sealed cord connector protects internal components
• All terminal interfaces and crimps sealed from environment when mated
• Microswitch-based proximity switch
• Ergonomic handle, rubberized grip
• Knurled button for easy, non-slip latch activation/deactivation
• Vehicle Inlet
• Hinged cover with gasket to protect receptacle from elements
• Drain holes to eliminate water that might collect in terminal cavities
