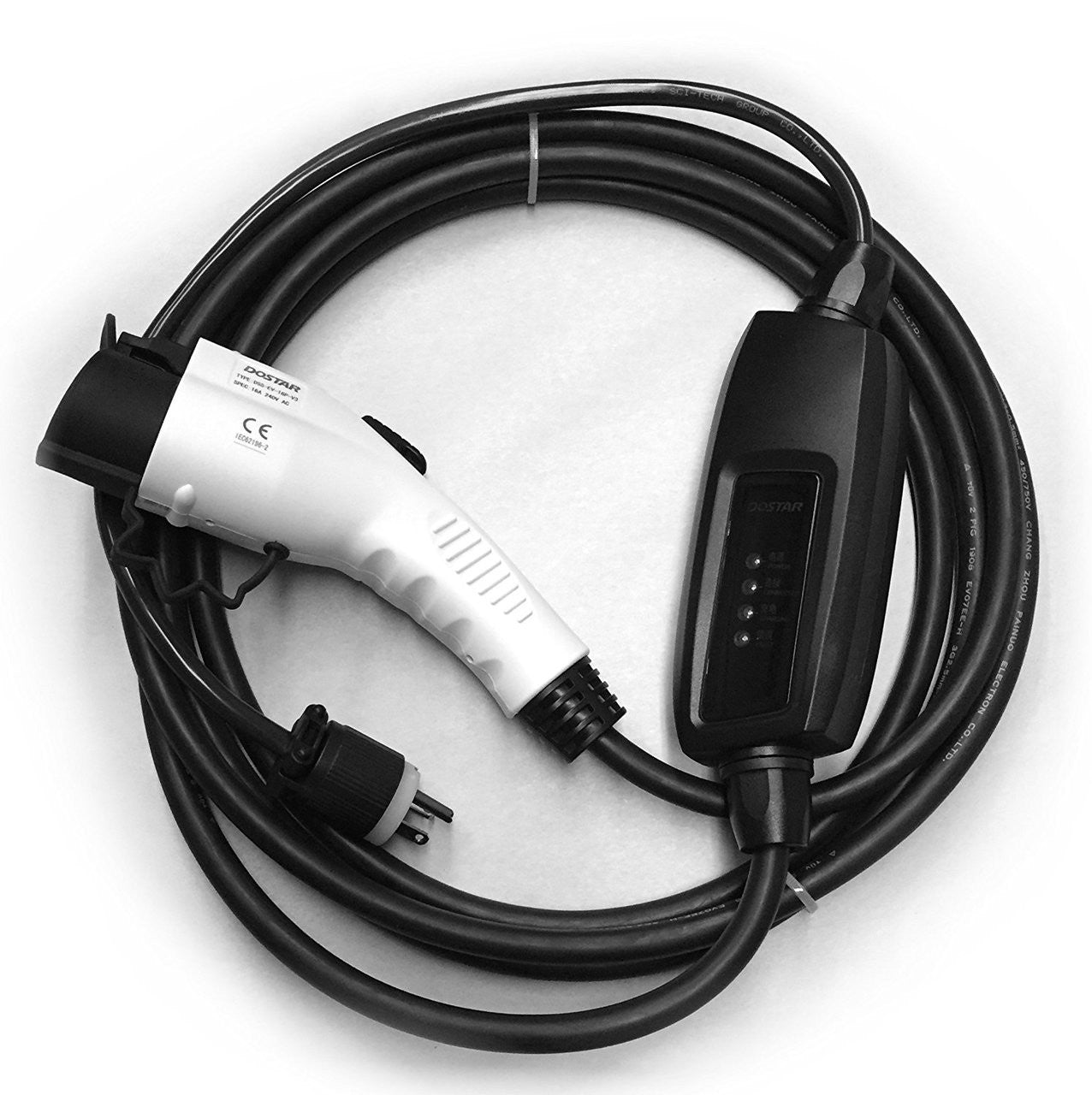

Volkswagen E-Golf Level 2 Quick Charger - 240V

The Level II 240v electric vehicle charger arrives ready to plug in for use into a 240V receptacle and is easily attachable to most surfaces with the provided mounting bracket.

Most EV batteries will be charged from zero to full in less than 3.5 hours, leaving plenty of time to delay your charge by 2-8 hours with the easy to use time of charge delay feature on the unit.

The charger is equipped with a plug and cord assembly which can either be plugged into a suitably sized double-gang receptacle below or behind the unit. This easy plug and play installation enable you to take your charger on the road with you. The unit’s standard SAE J1772 connector is ergonomic for user comfort. The attached 24-foot cord gives you plenty of room to maneuver.

This electric car charger is jam packed with user-friendly features that make it easier than ever to efficiently and economically charge your electric vehicle.

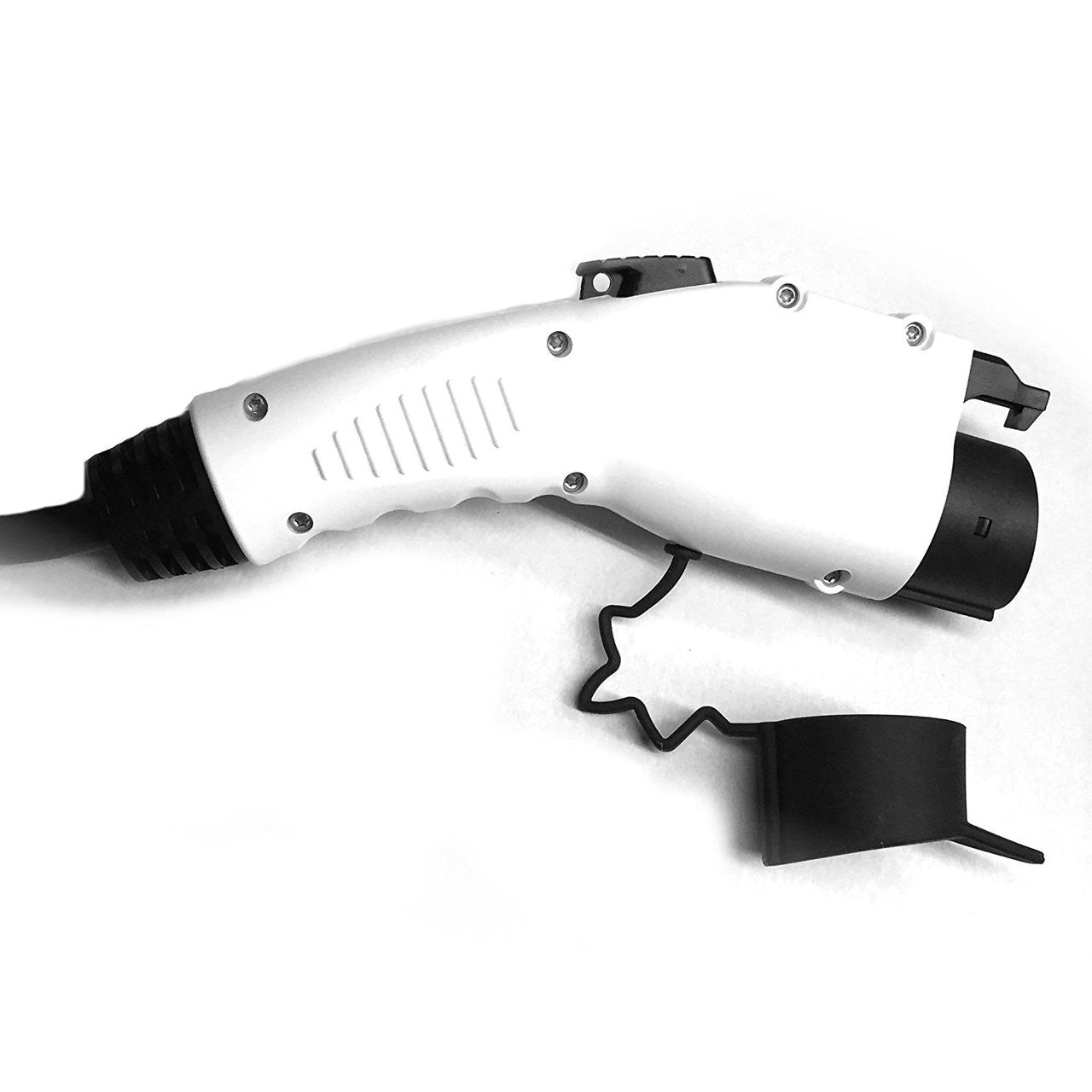

Charging plug meets SAE J1772 standards

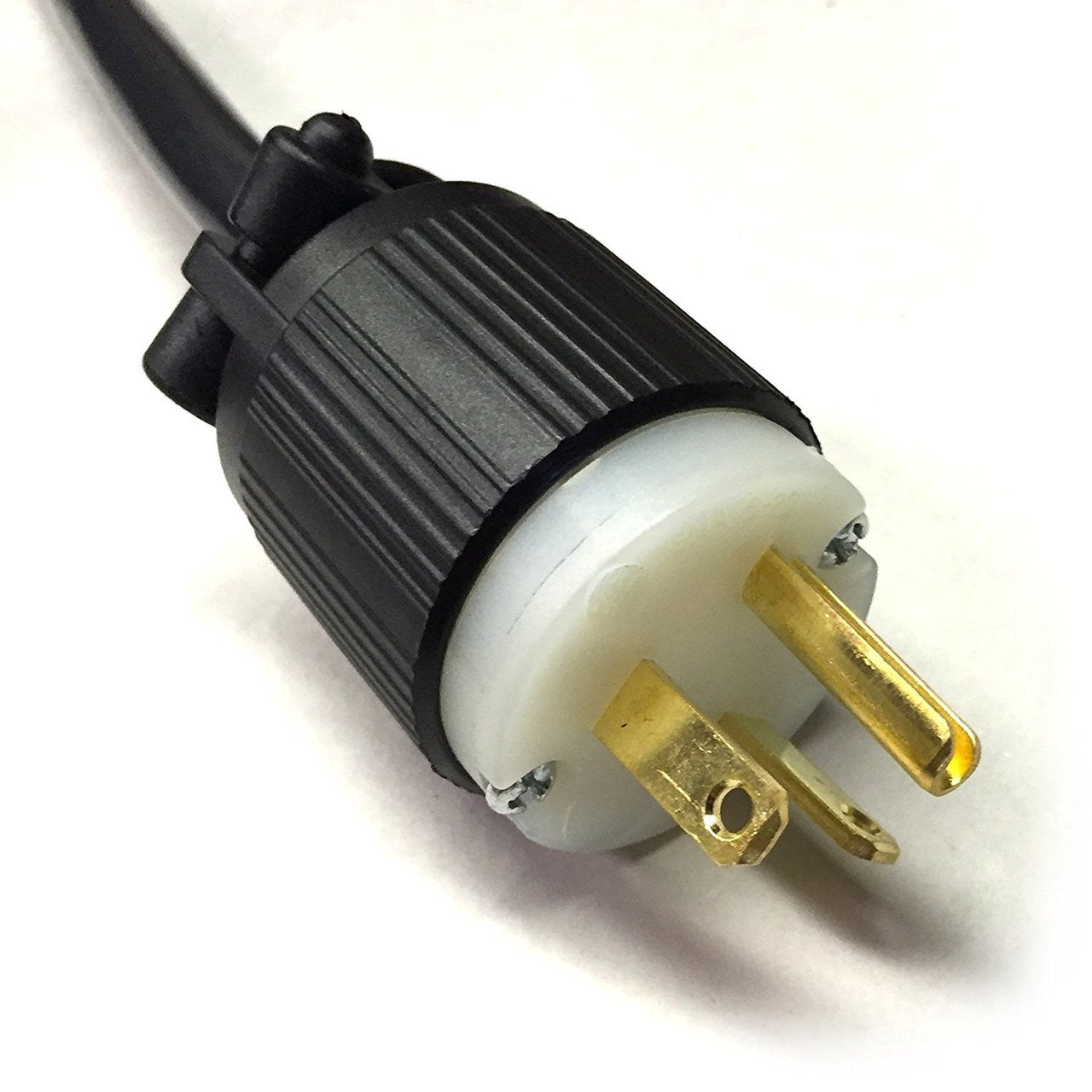

Power plug meets NEMA 6-20 standards
Control box meets SAE J1772 control principle
Excellent protection performance, protection grade IP55

Parameters
Rated current and voltage: 208-240V AC 16A
Working temperature: -30 ° C ~ + 50° C
Mechanical life: no-load plug in/pull out> 10000 times
Impact of external force: can afford 1m drop and 2T vechicle run over pressure

Materials
Case Material: Thermo plastic,flame retardant grade UL94-0
Contact Pin: Copper alloy, silver + thermo plastic on the top
Sealing gasket: rubber or silicon rubber

Control Box
Leakage protection(Restart recover)
Over-voltage under-voltage protection (self-checking recover)
Overload protection (self-checking recover)
Lightning protection
